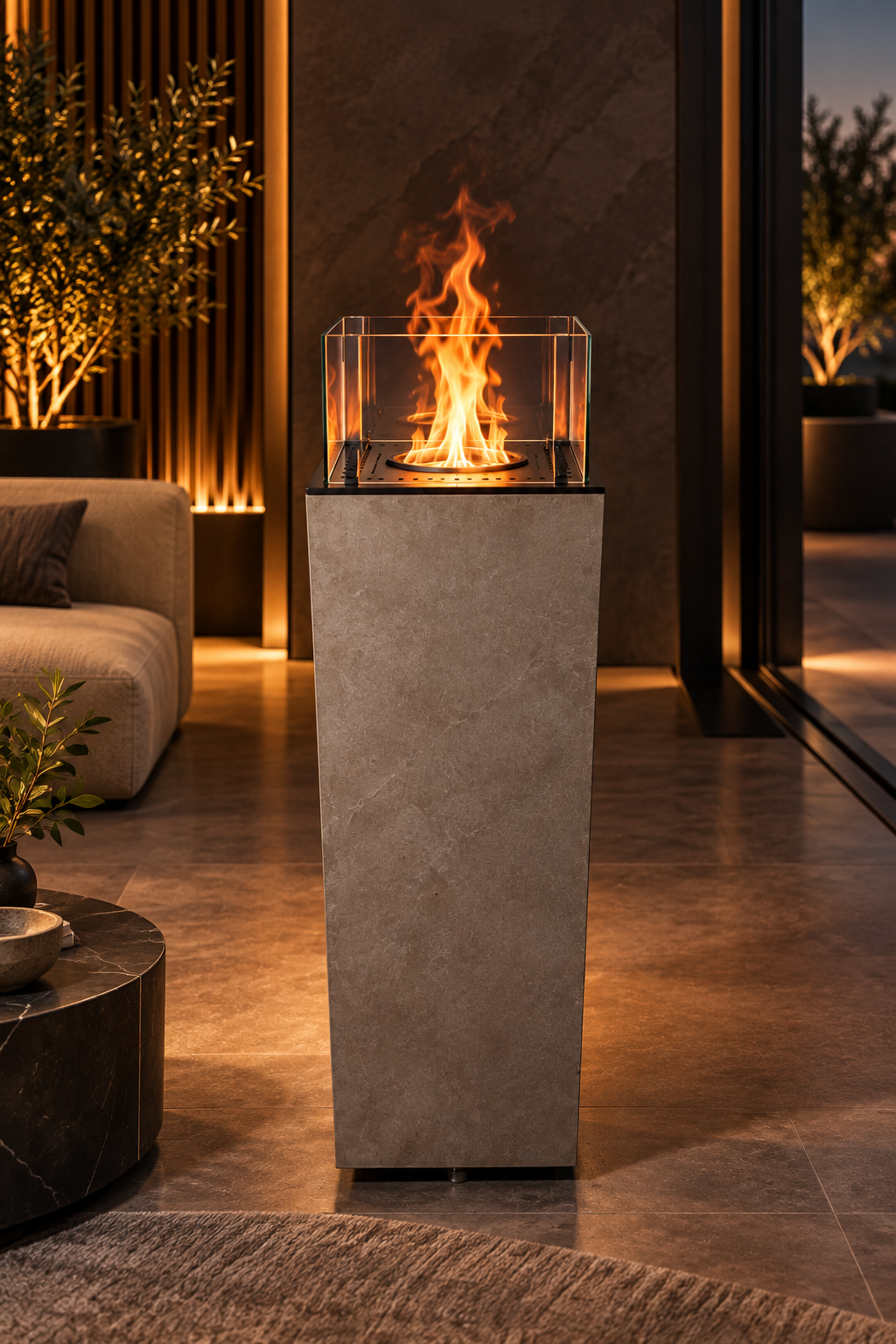

BASIC COLUMN F-WM 375

[ ATMOSFIRE ]

BASIC COLUMN F-WM 375

CHARACTERISTICS:
• Natural flame effect
• Remote control

BASE INCLUDED

Base colors
black
white
concrete

TECHNICAL DIMENSIONS:



[ATMOSFIRE]

FIRE PROJECTS

[ATMOSFIRE]

TECHNICAL FEATURES

Water Vapour Steam Burners

Water Vapour Steam Burners
Power Supply - Consumption & Safety. Heavy Metal Construction. Steam Generation & Easy Replacement. Hydraulic Water System. LED Lights & Chromotherapy. Controls - Smartphone Application - LCD screen. Audio Alerts. Ready for Installation. UVC Lamps for a Healthier Environment. Visual Effect. Dimension and Easy Installation.

Power Supply - Consumption & Safety.

- When we make our products, we take electricity safety in consideration. The power supply, keyboard plate and circuit board are waterproof and circuit systems also keeps distance with water tank, so its relatively safe but always we have to take in consideration the instruction safety manual.

- AC voltage 220 - 240V.

- Frequency 50 Hz.

- Power consumption from 50 W, depending on the dimension of the burner.

Benefits: safety, almost harmless for electric shock.

- 75% less electricity due to low consumption.

Heavy Metal Construction.

- Rigid special heavy-duty frame

- Accessibility from 6 sides

Benefits: better accessibility and durability (heavy-duty frame)



Steam Generation & Easy Replacement.

Steam Generation & Easy Replacement.

- Two separate mist makers.

- Adjustable fan (motor) to adjust the speed, intensity and density of the flame.

Benefits: flame height adjustment, up to 75cm (under conditions) and flame speed (slow motion to fast motion and reverse).

- Replacement of any broken or damaged part can be done very easily by replacing only the part we want.

Benefits: any component can be replaced very quickly without tearing the structure or interfering with it, at low cost because only the component we want is changed.

Hydraulic Water System.

- Automatic, built-in pump system provides easy water filling.

- Pumps stop automatically when filled, preventing overfilling.

- The water tank is built into the appliance and does not need to be removed to fill the burner.

- The possibility of automatic emptying of the containers in case of long periods of inactivity or if the burner is moved to another location.

- Automated water filling directly to the water supply.

Benefits: easy and quick filling and emptying of the burner without any intervention in the appliance or in the structure, the possibility to connect the appliance directly to the water supply so that manual filling is not required, you don’t need to worry if your device is full of water the machines does that for you.

LED Lights & Chromotherapy.

Led Lights & Chromotherapy.

- multiple light bars.

- fixed flame colour, orange LED.

- multiple colors up to 64.

- option for simultaneous colour operation (on some models).

Benefits: possibility to adjust the flame in many fixed and alternating colour combinations.

Controls - Smartphone Application - LCD screen.

- LCD screen, easily accessible for setting the device.

- Indication on the screen in case of a problem.

- Ability to connect to a smartphone or remote control (in most of the products).

Benefits:

- Immediate notification of the problem due to indications on the LCD screen.

- Connection to smartphone and remote-control command.

- Extremely easy setup for controlling one or several burners at the same time.

Audio Alerts.

Audio alerts

- smart fireplaces.

- Audio commands for all processes (emptying, filling appliance, opening and closing appliance, etc.). - sound simulation of wood combustion.

Benefits: smart fireplace as it has sound alerts for emptying and filling water, opening and closing the appliance and also has a simulated wood burning sound with volume levels.

Ready for Installation.

- The required ventilation needed by the appliance is provided either from the top or bottom of the appliance, without the need for ventilation louvers under the appliance.

- The appliance can be installed at any desired height from the floor surface or can be installed submerged and brought flush with the floor. Benefits:

- The device is ventilated from the top or bottom, so no air intake and ventilation louvers are needed even if we want to submerge the device.

- In case we want to cover the upper part of the appliance so that the burner not to be visible, we can do so without any problem, because the burner is ventilated from the bottom part as well.

UVC Lamps for a Healthier Environment.

UVC Lamps for a Healthier Environment.

- Some models of steam burners have germicidal UVC lamps, they disinfect air, water and water vapor. Ultraviolet C (UVC) radiation deactivates and kills viruses (covid-19 and others), bacteria, microorganisms and pathogens while the fireplace is running, constantly freshening the air in our home. Every environmental protection organization has recognized the UVC treatment process as a proven and reliable technology that kills viruses, etc. Installed in the air and water tanks, UVC lamps also disinfect the water vapour produced by the electric steam fireplace.

- These UV rays are located inside the tanks and are therefore not visible to the naked eye. We can truly talk about a "clean" fireplace, ridding our space of 99.99% of dangerous germs. The electric steam fireplace fully complies with safety standards: CE (Europe), FCC (USA), IC (Canada).

- It can also be used in places to help where sterilization of space is required (medical practices, institutes, etc.).

Benefits: due to the fact that the device help disinfect the room, we have a more hygienic environment .



Visual Effect.

- A clear visual effect of a flame, due to the single flame and its great height

Benefits: can be installed even in the most demanding and special architectural structures

Dimension and Easy Installation.

- Many choices of dimensions, 0.50cm & 0.60cm & 1.00cm & 1.50cm and designs, angular, round f35 & f50.

Benefits: can be installed even in the most demanding and special architectural structures because of the variety of dimensions which these burners has.
